COBRA SKID STEER LOADERS
The Ultimate
Heavy-duty Workhorse!

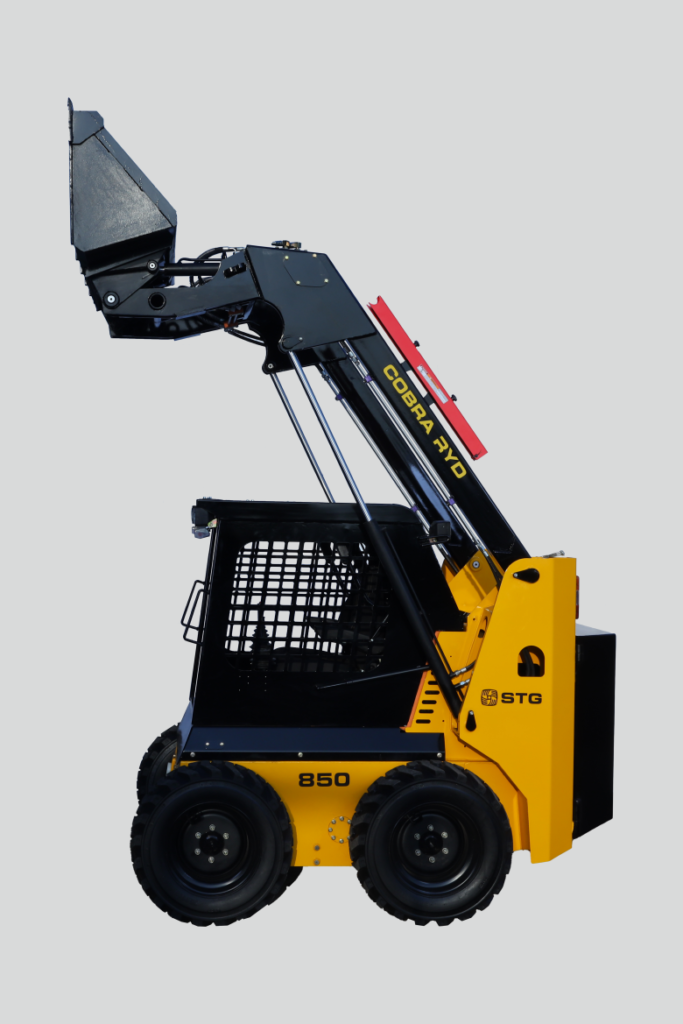

Introducing the versatile and powerful Cobra RYD 850 Skid Steer Loaders. Designed to tackle a wide range of tasks with precision and efficiency. With their compact size and maneuverability, Cobra RYD 850 Skid Steer Loaders are the go-to machines for construction, landscaping, agriculture and more. Cobra RYD 850 Skid Steer Loaders gets the job done faster & smarter.
Equipped with a versatile bucket attachment, the Cobra RYD 850 Skid Steer loaders can efficiently scoop, lift and transport materials, making light work of even the toughest jobs and when it comes to handling pallets, bales or other bulky items, the fork attachment provides exceptional stability and control.

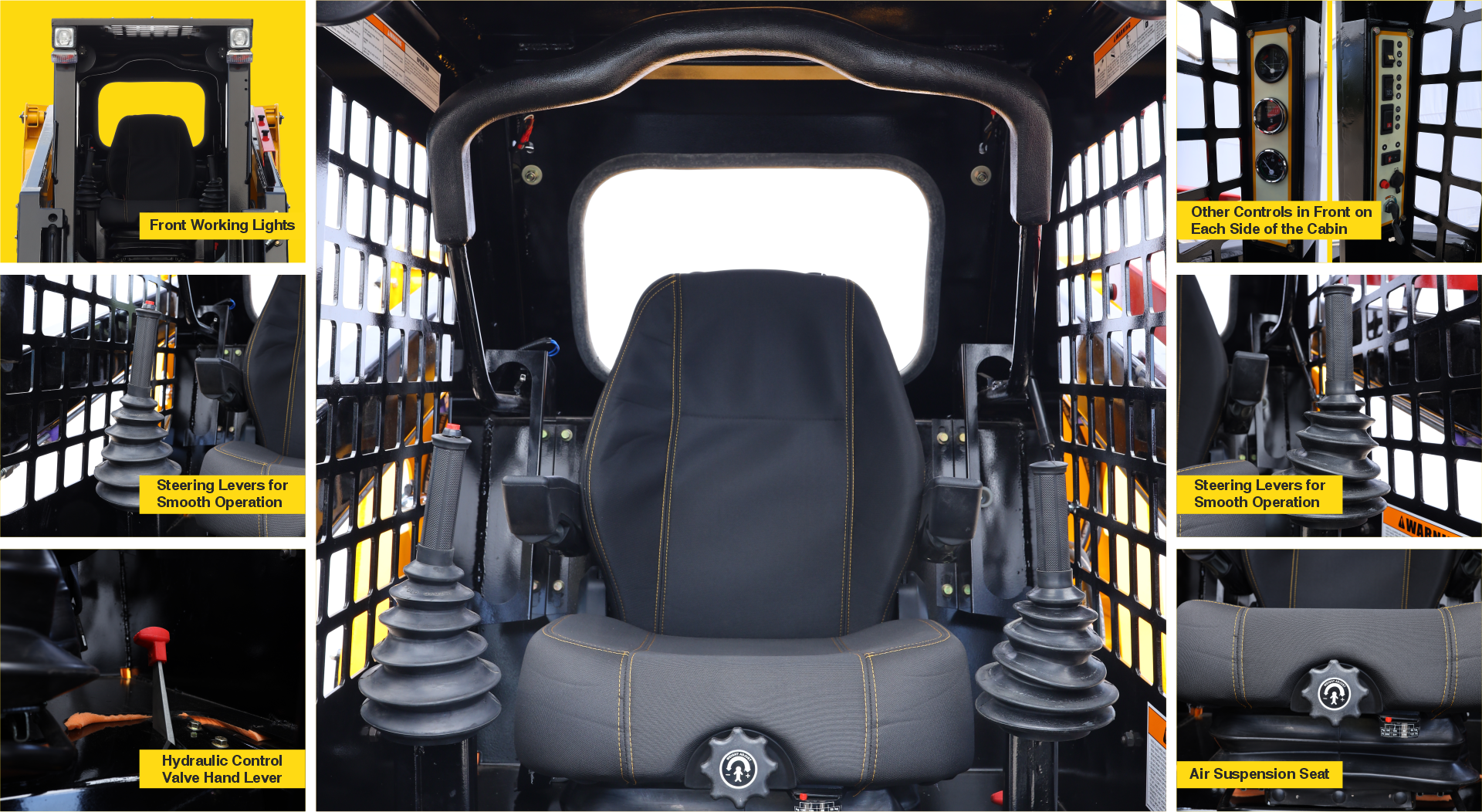

Safety is paramount and Cobra RYD 850 Skid Steer Loaders are equipped with advanced safety features such as roll-over protection, operator restraint systems and excellent visibility for enhanced operator comfort and peace of mind.
ROBUST & FLEXIBLE CHOICE
The COBRA RYD 850 is equipped with essential safety features, including a front horn, backup alarm, front and rear lights and a triple filtration system. These features are complemented by emergency stop buttons, safety belts, and more, all designed to ensure safety , minimizing the risk of accidents or injuries.
FEATURES
Easily Operable as No Gearbox & Clutch
Fully Hydraulic
Versatile & Multi-Tasking
360 degree Rotation & Compact Size
Minimum Maintenance

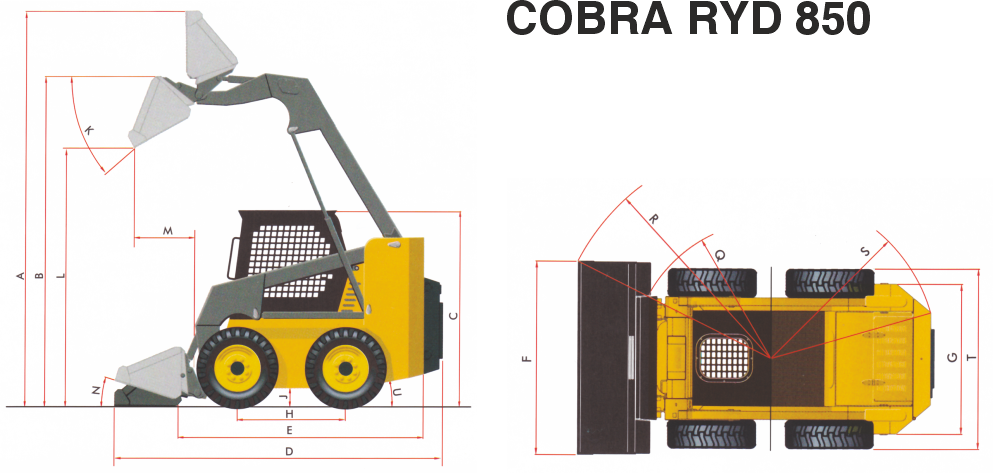

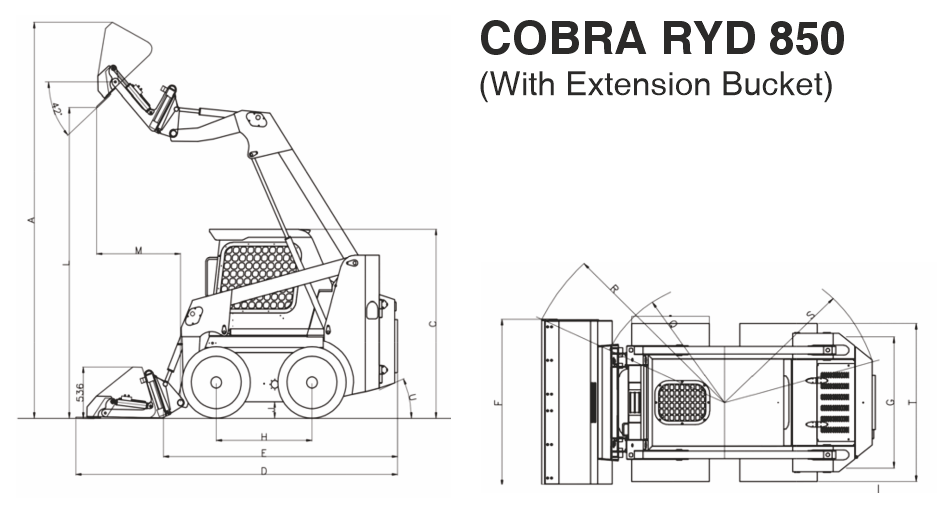

TECHNICAL DIMENSIONS
| Dimensions | COBRA RYD 850 | COBRA RYD 850 (with extension Bucket) | ||
| Overall Operating Height (To Top To Bucket) | A | mm | 3870 | 4131 |
| Overal Operating Height (To Hinge Pin) | B | mm | 2970 | 2970 |
| Overall Height | C | mm | 2025 | 2025 |
| Overall Length (With Bucket) | D | mm | 3270 | 3519 |
| Overall Length (Without Bucket) | E | mm | 2560 | 2560 |
| Overall Width | F | mm | 1690 | 1690 |
| Tread Width (or Track Gauge) | G | mm | 1330 | 1330 |
| Wheel Base (or Length of Track on Ground) | H | mm | 1045 | 1045 |
| Ground Clearence | J | mm | 174 | 174 |
| Dump Angle | K | degree | 42 | 42 |
| Dump Height | L | mm | 2236 | 3274 |
| Dump Reach | M | mm | 608 | 917 |
| Rollback at Ground | N | degree | 23 | 23 |
| Turn Circle Front (Without Bucket) | Q | mm | 1234 | 1234 |
| Turn Circle Front (With Bucket) | R | mm | 1958 | 1958 |
| Turn Circle Rear | S | mm | 1490 | 1490 |
| Overall Width (Without Bucket) | T | mm | 1603 | 1603 |
| Departure Angle | U | degree | 24 | 24 |
| Tyre (4 Wheel) | 10 x 16.5 – 10PR | 10 x 16.5 – 10PR | ||
| Performance | ||||
| Engine | Hyundai / Cummins | Hyundai / Cummins | ||
| Rated Operating Capacity | kg | 850 | 850 | |
| Tipping Load | kg | 1680 | 1680 | |
| Operating Weight | kg | 2680 | 2680 | |
| Travel Speed | km/h | 11 | 11 | |
| Bucket Capacity (Heaped Capacity) | 0.5m3 | 0.5m3 |
